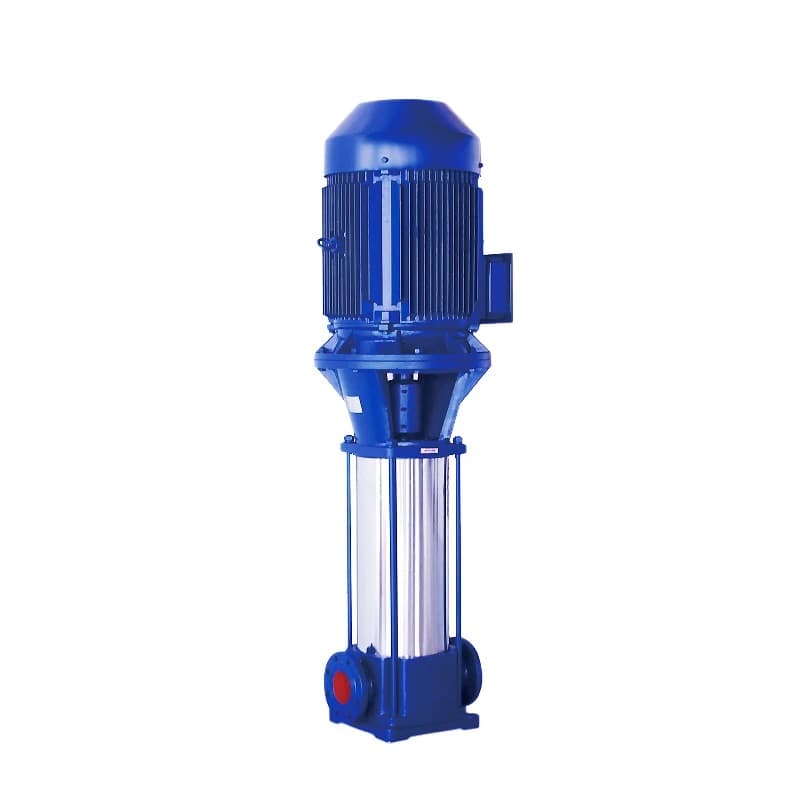

OWP7MQL8 MULTISTAGE FIRE FIGHTING CENTRIFUGAL PUMP
Model: OWP7MQL8
Integrating global fire protection standards, the OWP7MQL8 series features an innovative detachable vertical structure. It is designed to provide high-pressure water supply with maximum reliability and simplified maintenance.
Product Description
Designed for vertical pipeline installation, this pump allows inlet and outlet connections on the same horizontal line, acting much like a valve. The detachable body structure reduces maintenance downtime by up to 50% for mechanical seal replacements.
Fire Safety Compliant
Strictly adheres to international fire-fighting pressurization standards.
Pipeline Design
Inline inlet/outlet for easy space-saving valve-like installation.
Main Applications
- ● Industrial Fire-Fighting Systems
- ● High-Rise Parallel Water Supply
- ● Boiler Feed Water Systems
- ● High-Pressure Cleaning Liquids
Operating Conditions
| Flow Rate (Q) | 1.4 - 192 m³/h |
| Head (H) | ≤ 230 m |
| Outlet Pressure (P2) | < 2.5 MPa |
| Rotational Speed | 2960 rpm |
| Operating Voltage | 380V |

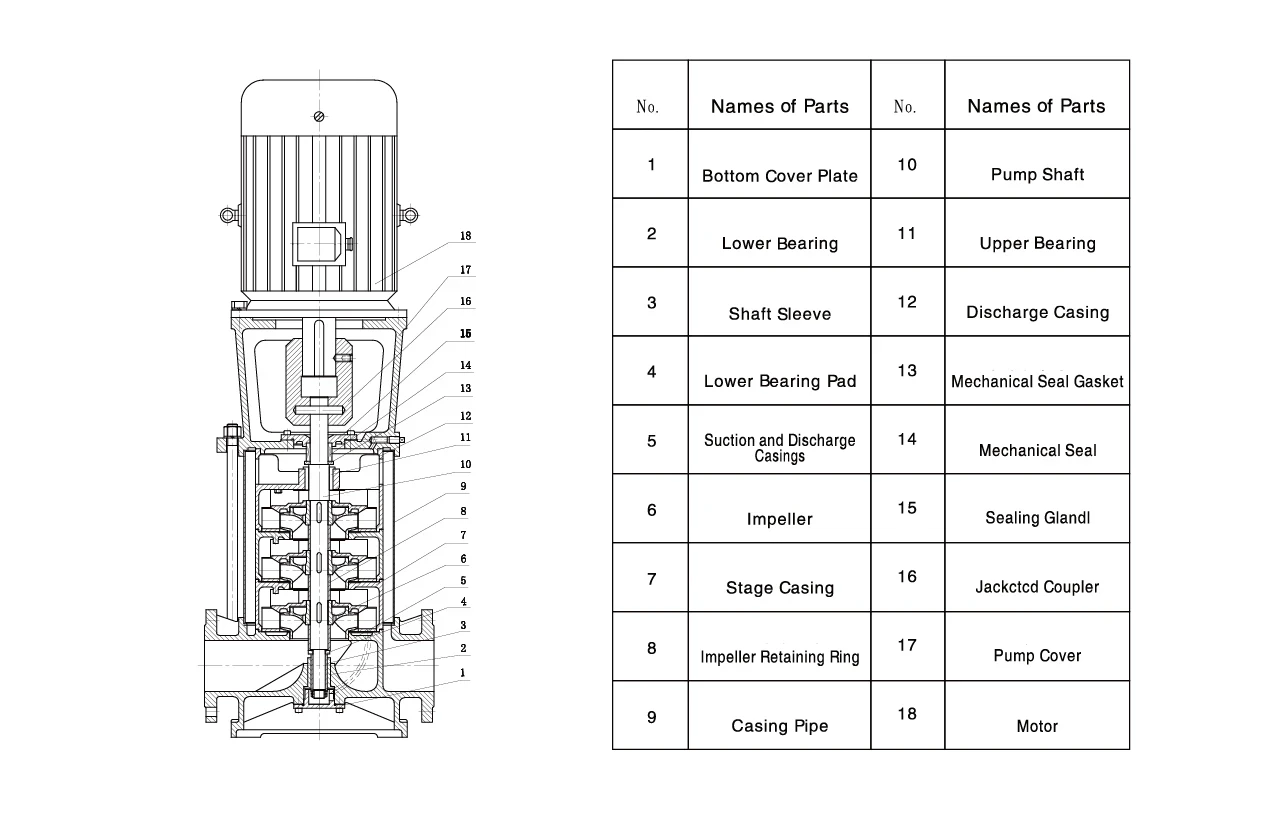

Structure Diagram
