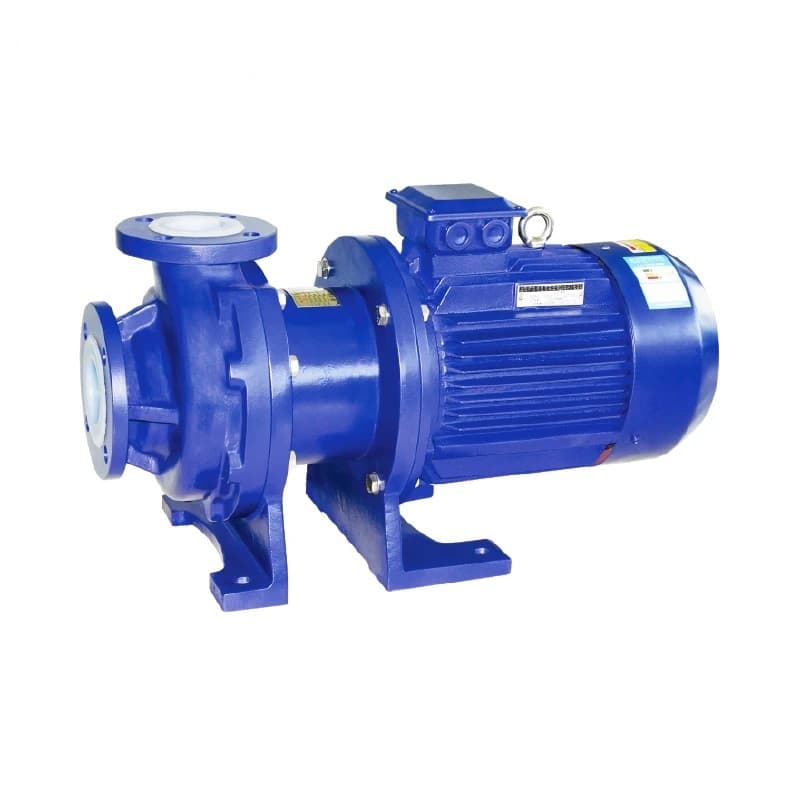

MIPA9X2K MAGNETIC PUMP
Model: MIPA9X2K
Fundamental elimination of leakage: the MIPA9X2K uses magnetic coupling to transfer power, achieving comprehensive sealing. This fluorine-lined magnetic pump is specifically designed for the global processing industry of highly valuable and hazardous liquids.
Product Description
The MIPA9X2K series utilizes high-quality material selection to ensure 100% leak-free operation. The pump body shell is made of high-strength ductile iron, while all flow-through parts are molded from pure F46 material for maximum corrosion resistance.
Superior Materials
Pure F46 lining, sintered silicon carbide shafts, and Neodymium-iron-boron magnets.
Advanced Thermal Management
Spiral grooves in the bearing sleeve for lubrication and eddy current heat dissipation.
Rear-Pull-Out Maintenance
Single-person internal maintenance without disassembling the pipeline system.
Chemical Compatibility
Handles strong corrosive media at concentrations up to 100°C:

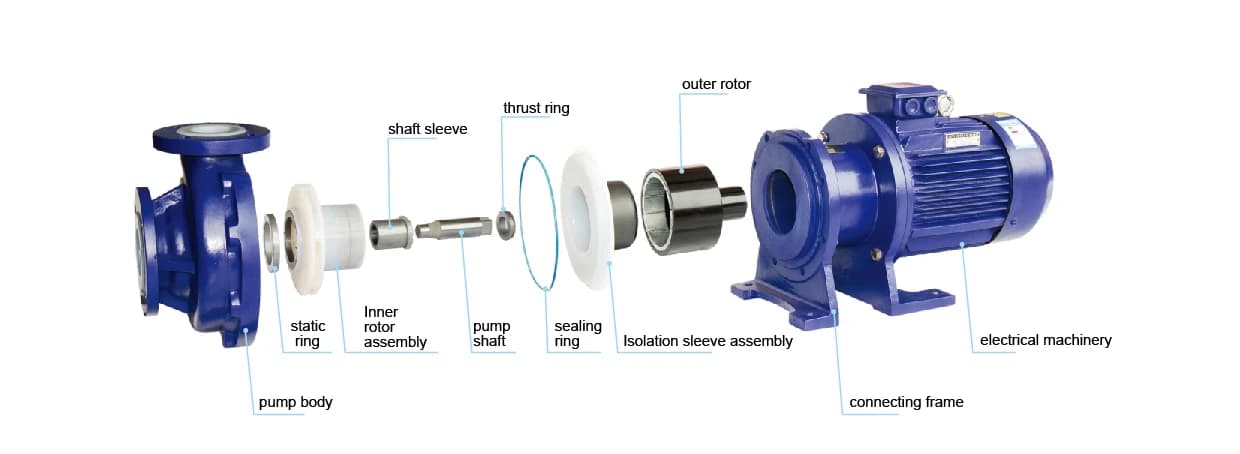

Structure Diagram
