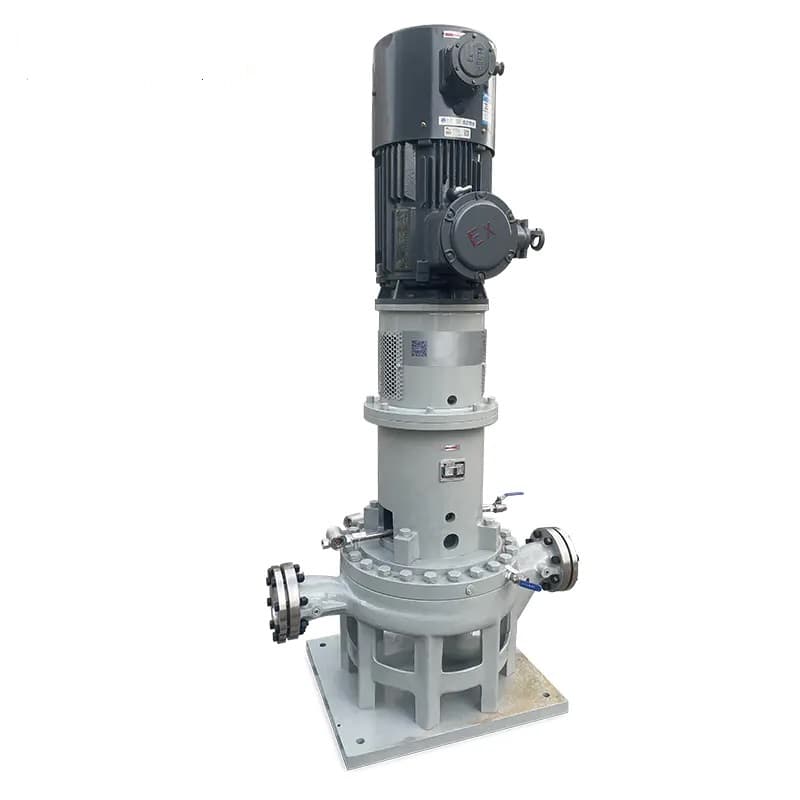

TIPX2C9W7A Chemical Vertical Processing Pump
Model: TIPX2C9W7A
TIP chemical vertical process pumps are specifically designed for vertical installation scenarios with limited space and high-reliability requirements. They are applicable in fields such as petrochemical, energy, and cryogenic engineering, and are suitable for transporting clean or slightly contaminated media.
Product Description
The Omron Tech Pumps TIP series cantilever vertical centrifugal pumps feature a compact vertical layout where the motor is directly connected to the pump body, reducing floor area by 60% compared to horizontal pumps.
Impeller Design
Single-suction radial closed structure with replaceable wear rings for cost-effective maintenance.
Pump Body
Radially split with restricted gasket sealing. Double-volute design for bodies over 80mm.
Bearings
Grease lubricated with easy-access filling cups on the bearing cover.
Shaft Seal
Flexible selection of packing seals or mechanical seals based on conditions.
Application Areas
- 1. Cryogenic Factories: Transporting liquid ammonia and nitrogen with high sealing performance.
- 2. Coal Mining: Handling corrosive mine water and coal washing processes.
- 3. Power Plants: Boiler water make-up and desulfurization/denitration systems.
- 4. Marine Industry: Offshore platforms and seawater desalination plants.
Working Conditions
| Flow Rate | 2 - 2600 m³/h |
| Head | 0 - 250 m |
| Max Pressure | ≤ 2.5 MPa |
| Temperature | -20°C to 250°C |
| Max Speed | 2900 rpm |
