TIPQ9L4A7M Horizontal Centrifugal Pump with Temperature Sensor
Model: TIPQ9L4A7M
Redefining industry benchmarks for reliability and efficiency, the TIPQ9L4A7M overhung type horizontal centrifugal pump series is engineered for strict compliance with international standards. It is specifically designed for high-stakes scenarios in the petrochemical industry, energy extraction, and the transportation of highly corrosive media.
Product Description
This pump features a single-stage, single-suction, radial partial volute structure. It is equipped with an integrated Temperature Sensor for real-time monitoring of fluid conditions. It can transport inorganic and organic acids like nitric, sulfuric, and phosphoric acid across a wide range of temperatures.
Industrial Applications
Petrochemical & Refining
Crude oil distillation, catalytic cracking, hydro-refining, and intermediate product transfer (ethylene, propylene, benzene, xylene).
Coal Processing
Coal-to-liquid, coal-to-gas, and coal-to-methanol processes, involving coal slurry and syngas conveyance.
Power Industry
Boiler make-up water, condensate systems, and desulfurization/denigration process slurries.
Pulp & Paper
Raw material conveyance from storage to workshops and qualified pulp delivery to the headbox.
Operating Conditions
- Flow Rate: 3 - 2600 m³/h
- Head: 4 - 250 m
- Pressure: Up to 5.0 MPa
- Temperature: -20°C to 450°C
- Speed: 2950 / 1450 rpm

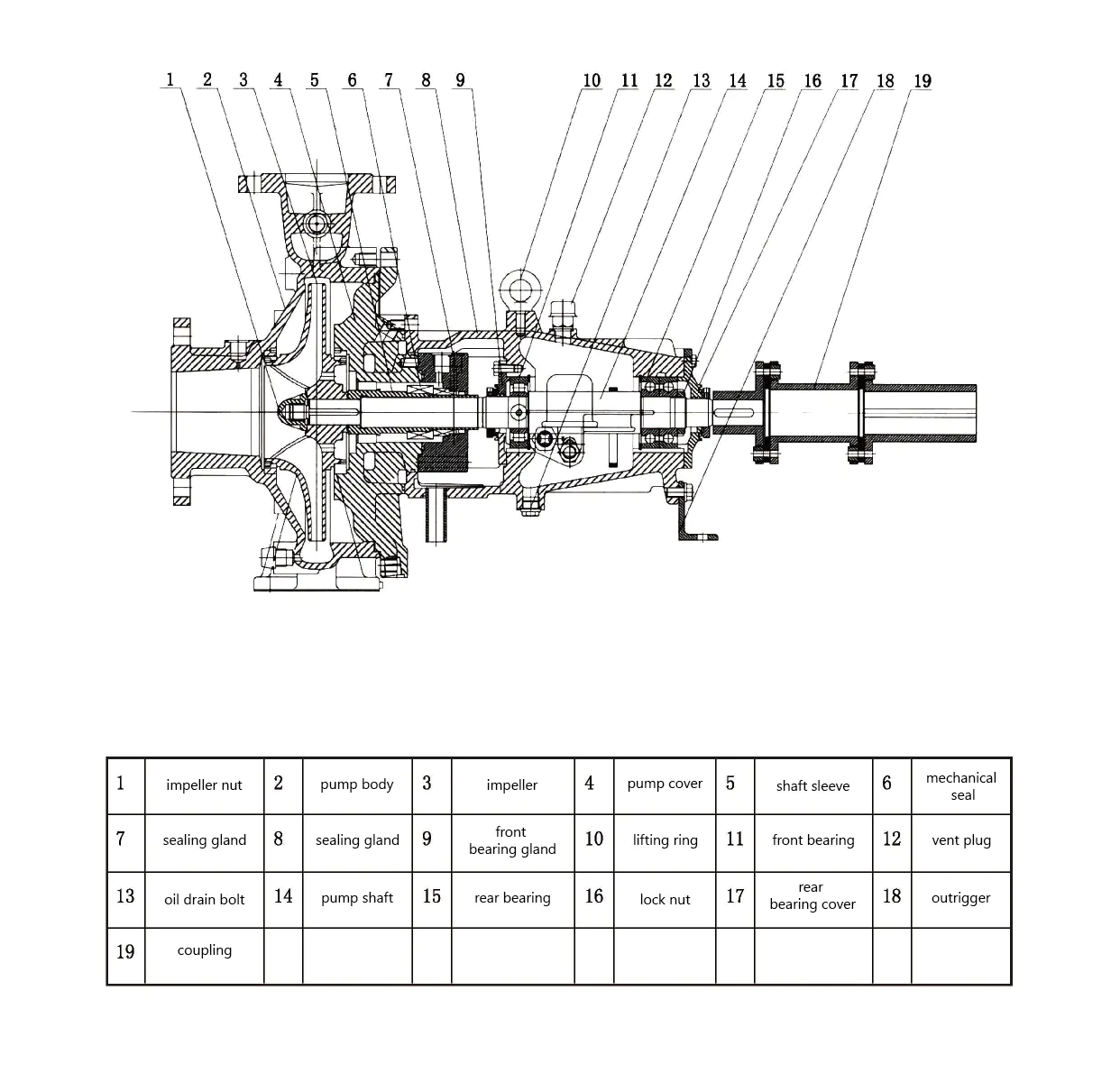

Schematic Diagram

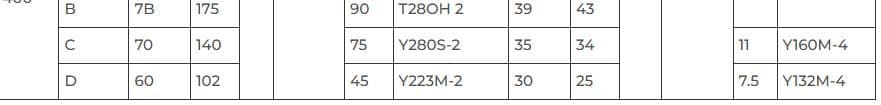

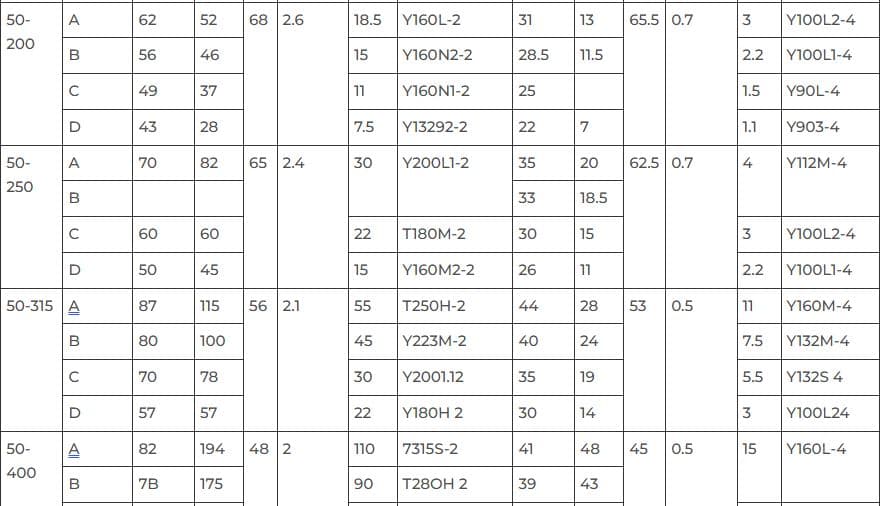

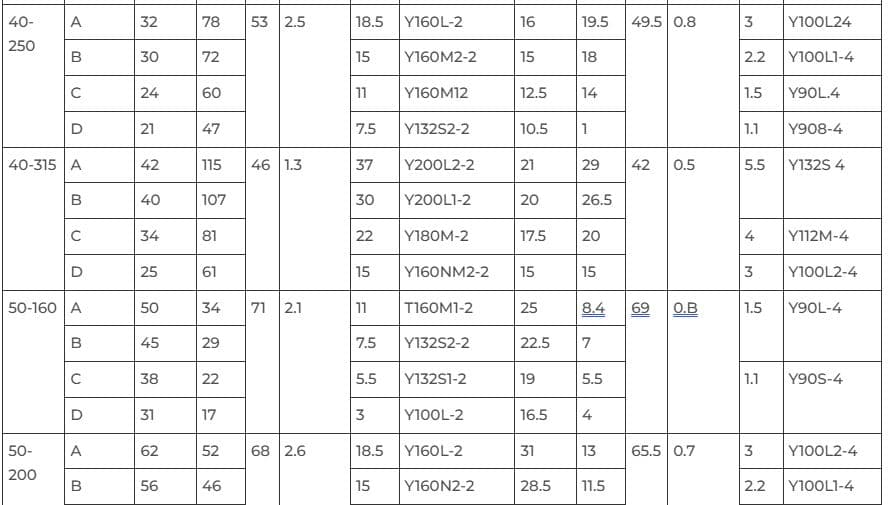

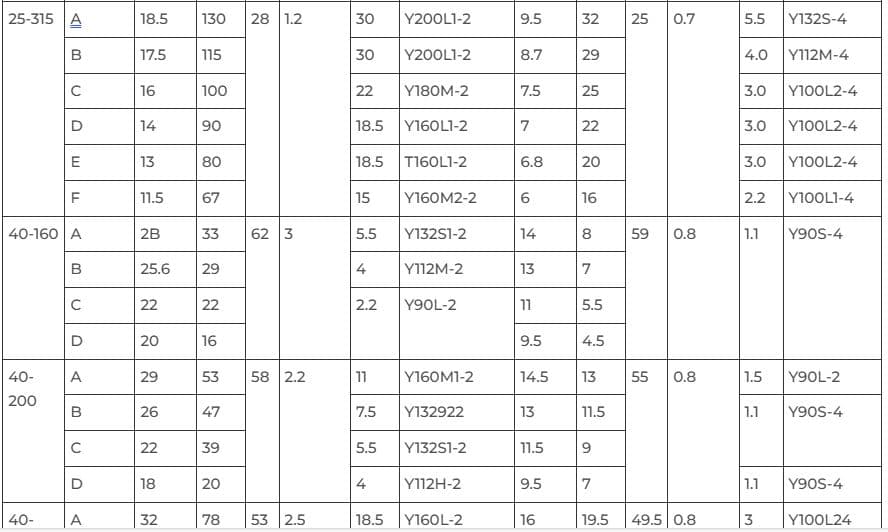

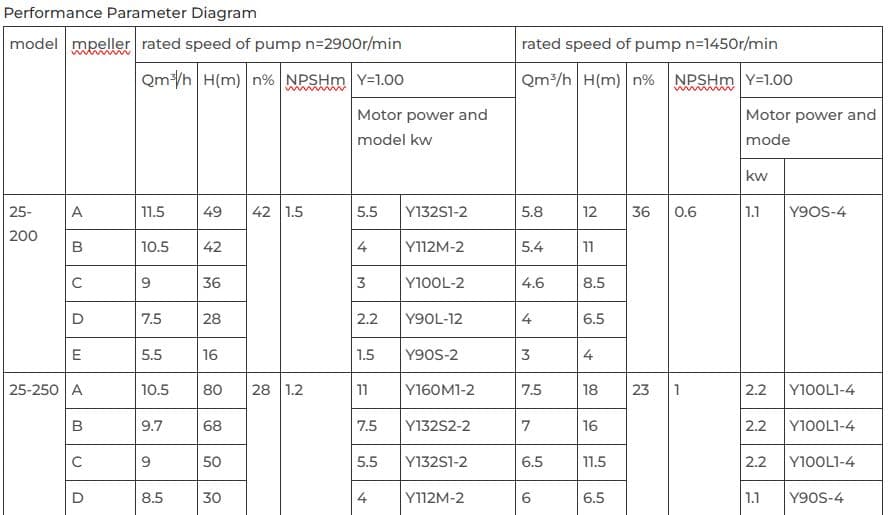

Performance Parameters
