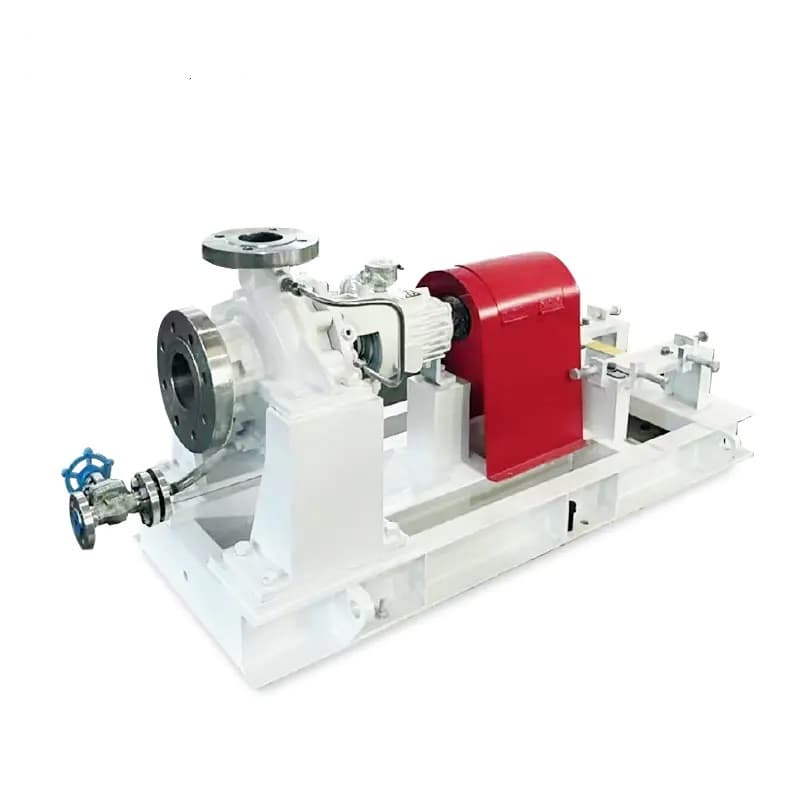

TIPL8Q5N2M Horizontal Centrifugal Pump
Model: TIPL8Q5N2M
Manufactured in strict accordance with the TIP standard, the TIPL8Q5N2M series is designed for complex chemical technological processes. These high-performance centrifugal pumps are suitable for low or high temperatures, neutral or corrosive media, and liquids containing solid particles.
Product Description
The TIPL8Q5N2M features a horizontal single-stage single-suction design with a compact layout for easy maintenance. The back-pull-out design allows for internal service without disturbing suction or discharge piping.
- API OH1 Standard: Designed and tested to reach international advanced industrial levels.
- Universal Components: Standardized parts facilitate global maintenance and reduced downtime.
- Advanced Lubrication: Constant-level oil cups control lubrication for long bearing life.
- Shaft Protection: Integrated shaft sleeve prevents direct corrosion from media.
Application Ranges
Petrochemical Distillation
Fine Chemical Synthesis
Sugar Refinery Extraction
Paper Machine Headbox Supply
Power Plant Cooling Systems
High-Purity Raw Material Transfer
Operating Conditions
Flow Rate
2 - 2000 m³/h
Head
Up to 160 m
Pressure
Up to 2.5 MPa
Temperature
-40°C to 260°C
Speed
2960 / 1480 r/min

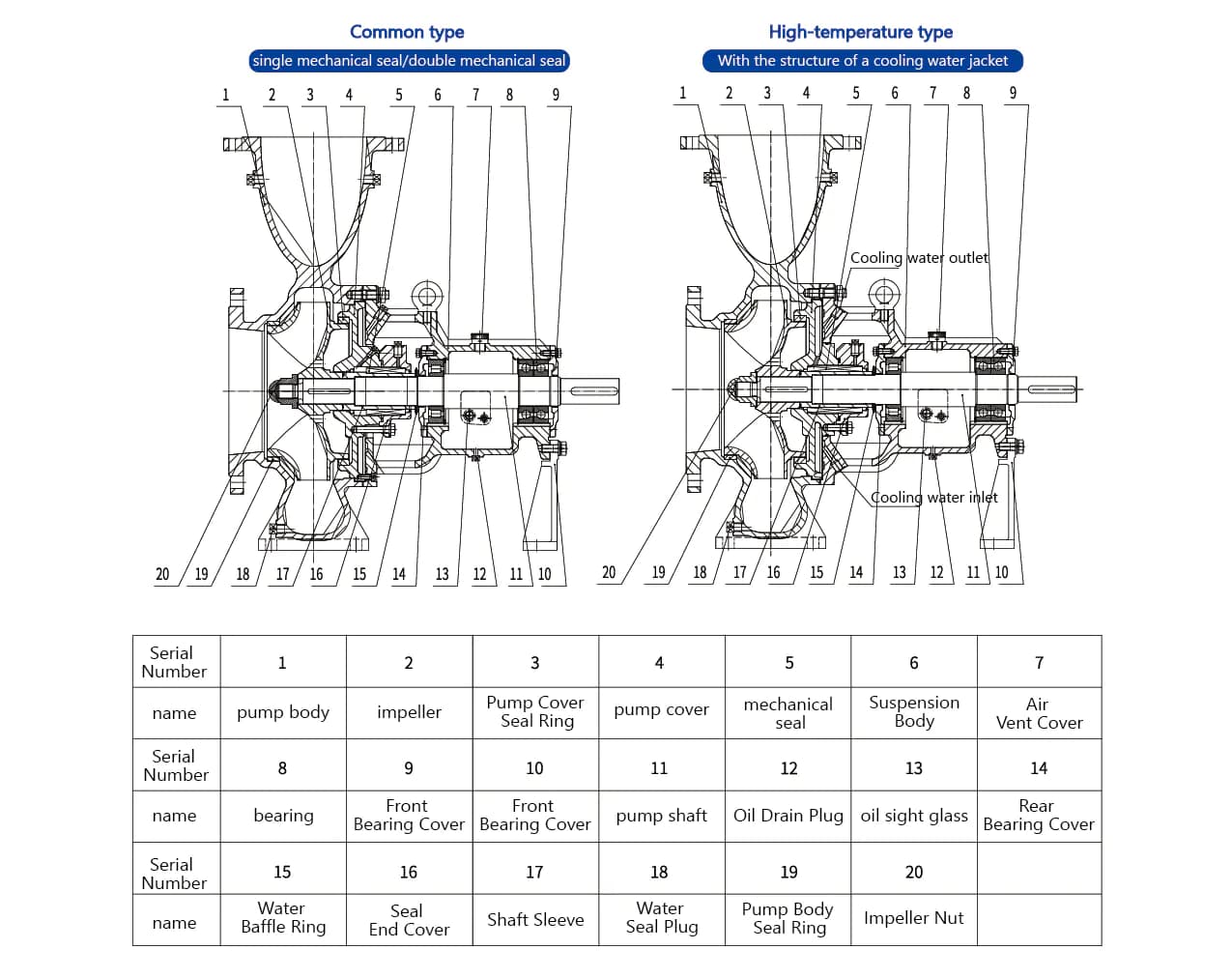

Schematic Diagram
