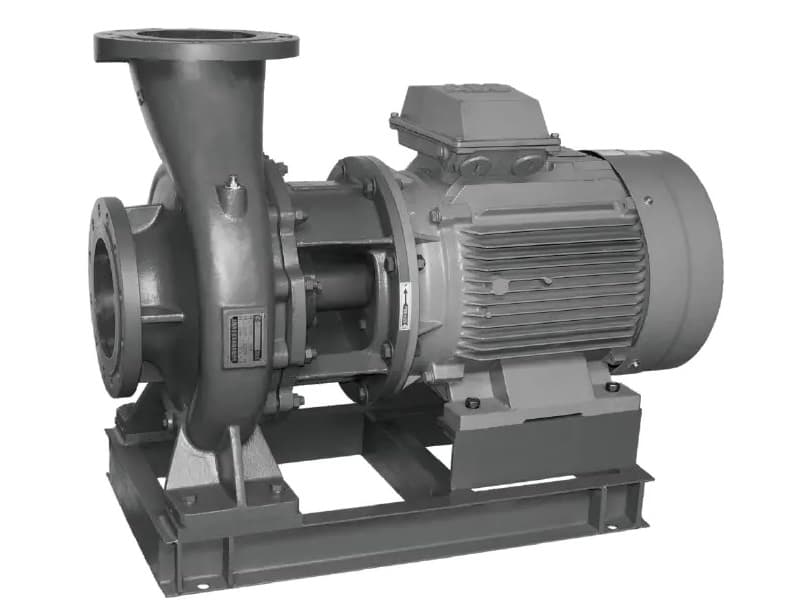

TIP9A2KX HIGH MOUNT HORIZONTAL CENTRIFUGAL PUMP
Model: TIP9A2KX
The Omron Tech Pumps TIP series of High Mount horizontal centrifugal pumps is a high-performance product developed by our company. Based on traditional High Mount Horizontal Centrifugal pumps, we have carefully considered the unique structural requirements during operation, integrated advanced structural concepts from home and abroad, and created it through extensive research and optimization.
Product Description
The Omron Tech Pumps TIP series features excellent craftsmanship. The horizontal structure gives it a low center of gravity and uniform stress distribution. The High mount horizontal centrifugal pump shaft is connected and positioned precisely, resulting in minimal vibration, strong stability during operation, and convenient maintenance. Its hydraulic flow-through components adopt an advanced model, with an efficiency 5-8% higher than that of ordinary pumps, which can reduce enterprise costs.

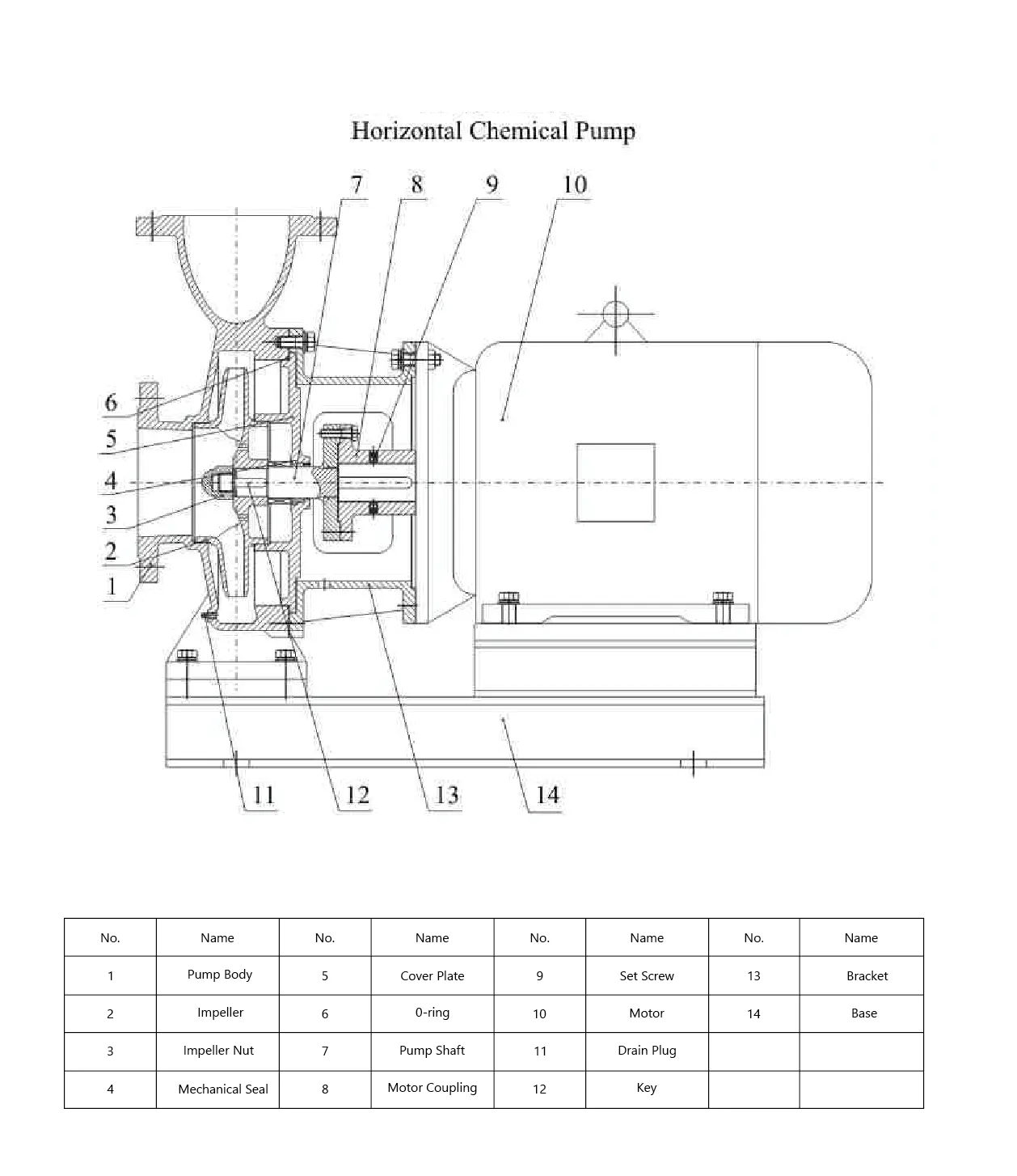

Schematic Diagram
Api Oh4 Overhung Type Horizontal Centrifugal Pump
Application Areas
Highly suitable for transporting chemically corrosive liquids with viscosity similar to water.
- ● Chemical Industry: Transporting various corrosive fluids during chemical production.
- ● Food Industry: Transporting fluid raw materials during food processing.
- ● Brewing Industry: Raw materials and fermentation broth transport.
- ● Refining Industry: Crude oil and refined oil products transportation.
- ● Pharmaceutical: Liquids required for drug production.
- ● Paper-making: Pulp, white water, and chemical additives.
- ● Metallurgical: Metallurgical liquids and flushing water.
- ● Power Industry: Boiler make-up and cooling circulating water.

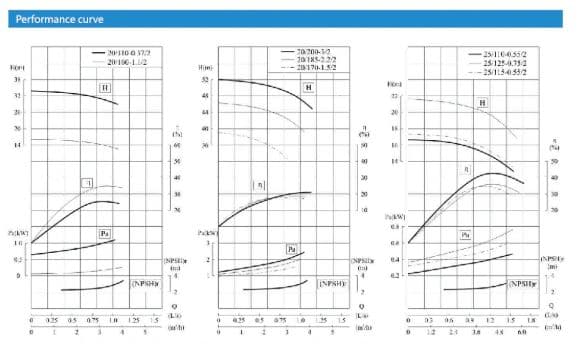

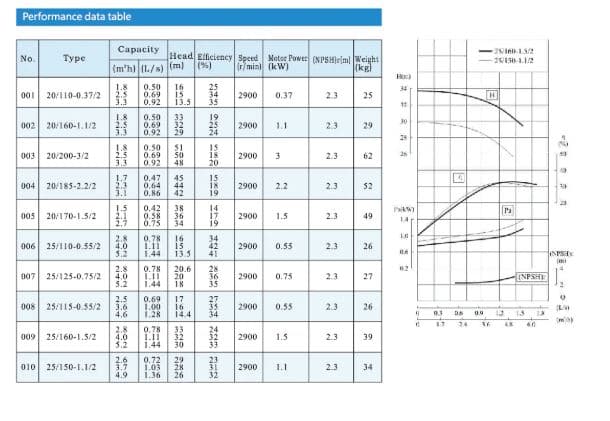

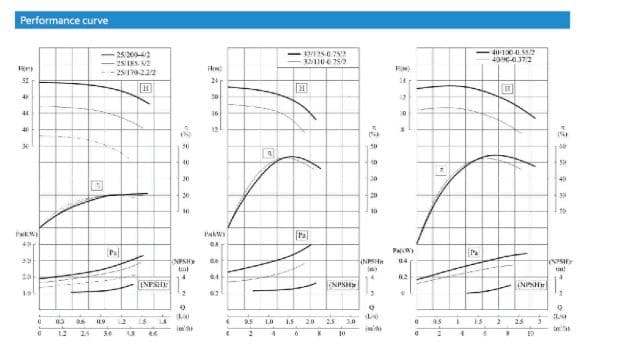

Performance Parameter Diagram
