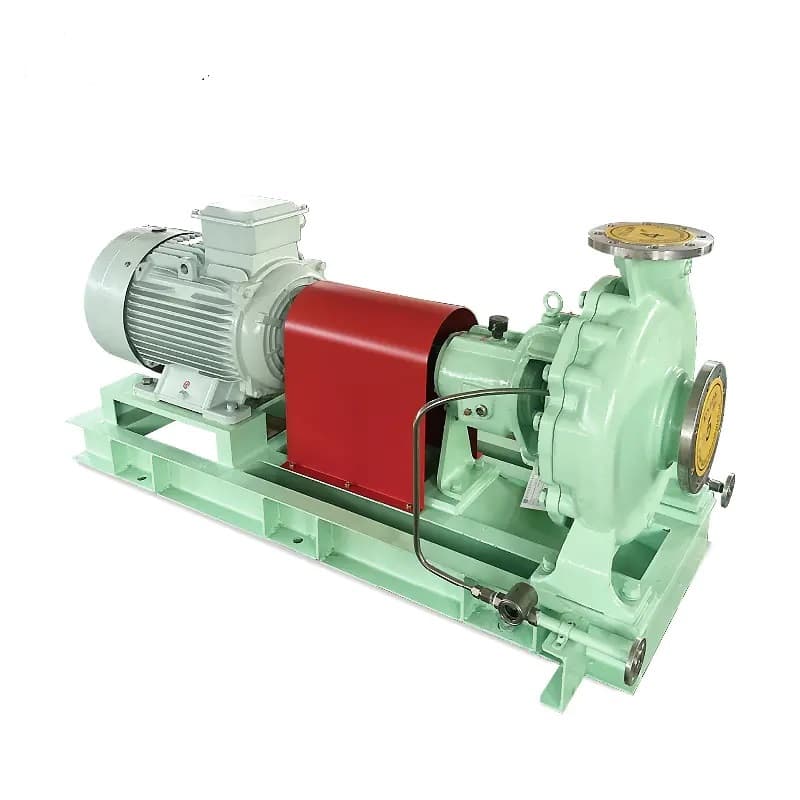

TIP8C2XKWR Horizontal Centrifugal Pump
Model: TIP8C2XKWR
The TIP8C2XKWR series horizontal single-stage single-suction centrifugal pumps are high-performance tools for chemical synthesis, refining, and power generation. They strictly follow TIP standards to provide efficient transportation for both clean and particle-laden hazardous media.
Product Description
With a robust foot-supported structure and a high-efficiency closed-type impeller, the TIP8C2XKWR ensures high head and stable operation across wide application ranges. The shaft seal is configurable for various hazardous environments, including packing, single/double mechanical, or tandem seals.
Core Features
Back-Pull-Out Design
Perform maintenance without adjusting the pump's inlet or outlet piping.
Universal Components
Standardized design across the TIP series reduces inventory costs and downtime.
Application Categories
- ● Petrochemical: Crude oil, refined products, and various additives.
- ● Fine Chemicals: Pharmaceuticals, pesticides, and fragrances.
- ● Sugar Industry: Extraction, purification, and production water cycles.
- ● Power Generation: Condenser circulating water and cooling systems.
Technical Operating Conditions
Flow
2000 m³/h
Head
160 m
Pressure
2.5 MPa
Temp
260°C
RPM
2960

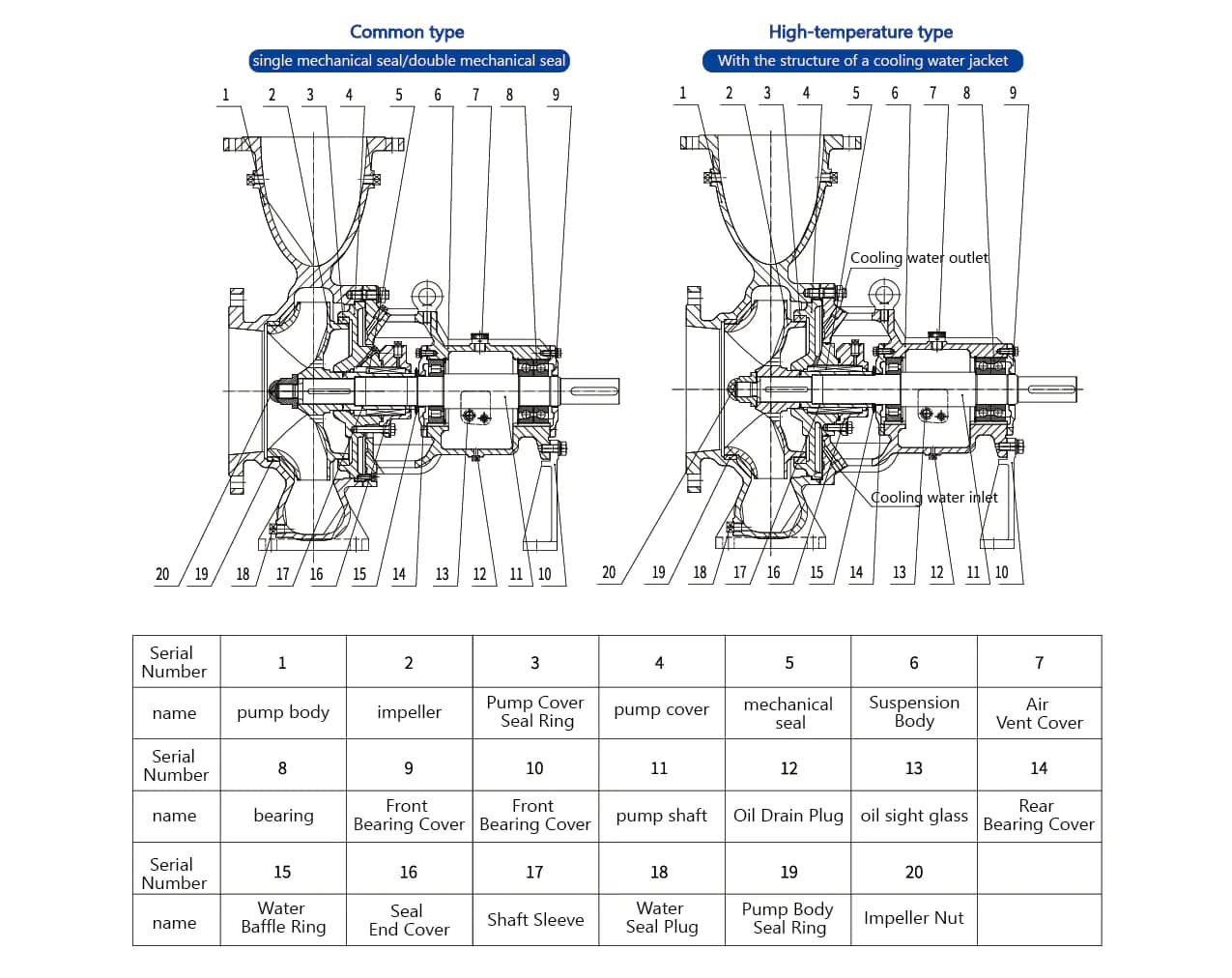

Schematic Diagram
