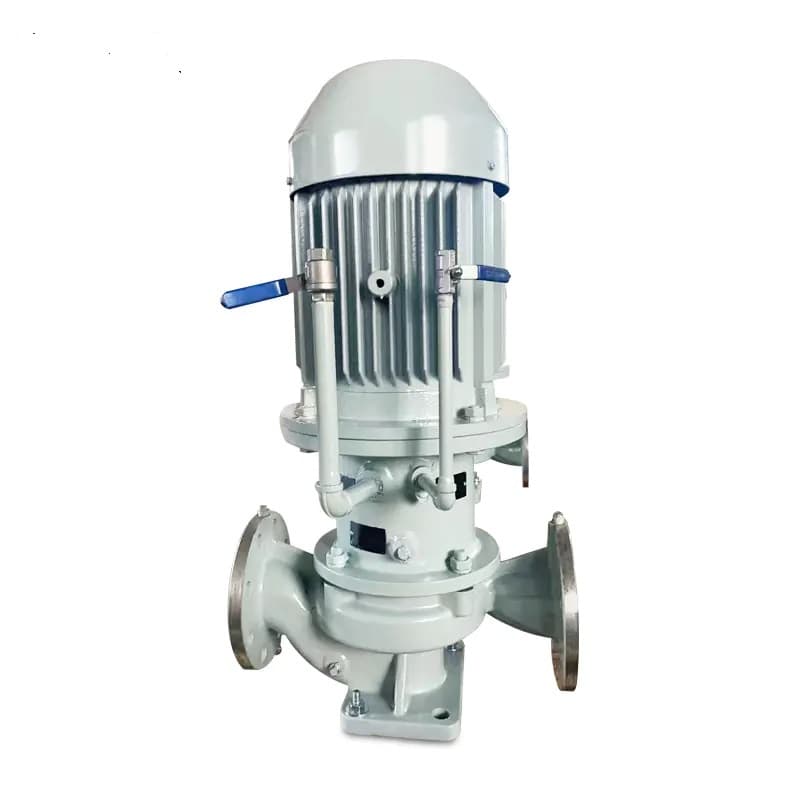

TIP4M2BRDL Chemical Vertical Centrifugal Pump
Model: TIP4M2BRDL
The Omron Tech Pumps TIP series of Overhung Type Vertical Centrifugal Pumps is a high-performance product developed through repeated research and optimization. It has been specifically engineered to meet the unique structural requirements of chemical processing environments, ensuring high reliability and efficiency.
Product Description
The Omron Tech Pumps TIP Chemical Vertical Centrifugal Pumps feature exceptional design and manufacturing processes. The shaft is connected by a flange and positioned with a spigot, ensuring high concentricity, low vibration, and reliable operation. The hydraulic flow-through components adopt a high-efficiency energy-saving model, with efficiency 5-8% higher than ordinary pumps.
Application Areas
- ● Chemical Industry: Transporting corrosive fluids in production.
- ● Refining Industry: Crude oil and refined oil transportation.
- ● Pharmaceutical: Drug production fluid conveyance.
- ● Metallurgical: Flushing water and related liquids.
- ● Power Plants: Boiler make-up and cooling water.
- ● Environmental: Sewage and sludge treatment.
Working Conditions
- Flow Rate: 1.8 - 900 m³/h
- Head: 135 m
- Suction P1W: ≤ 0.3 MPa
- Discharge P2W: ≤ 1.6 MPa
- Ambient Temp: ≤ 40°C
- Altitude: ≤ 1000 m
- Speed: 2960 / 1480 rpm

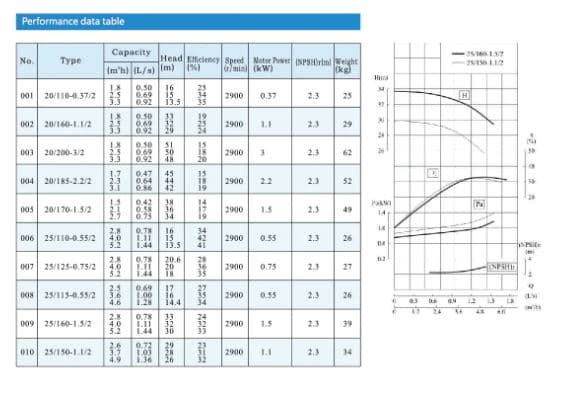

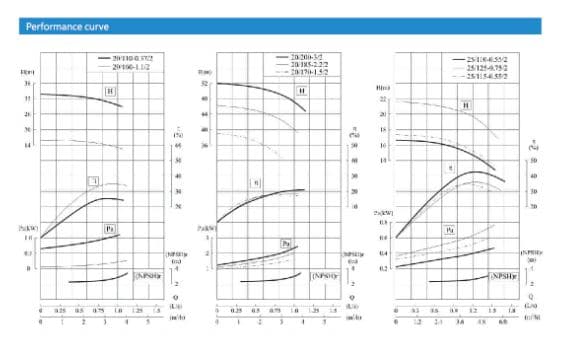

Performance Parameter Diagram
