G2AP Horizontal Centrifugal Pump
Model: G2AP
Specifically crafted for the intricate technological processes in the petrochemical field, the G2AP series is highly efficient and reliable. It features a foot-supported structure with open or semi-open impellers, designed for high-performance fluid transportation in demanding industrial environments.
Product Description
The G2AP series stands out with its meticulously engineered hydraulic performance. It solves usage and installation defects often found in standard process pumps. The increased inlet diameter reduces flow rate at the entry, significantly enhancing cavitation resistance. Wearing parts like rings and sleeves are easily replaceable, drastically reducing long-term maintenance costs.
Industrial Application Fields
Refineries
Petrochemicals
Cryogenics
Coal Mining
Chemical Fiber
Power Plants
Desalination
Offshore Industry
Environmental Protection
Technical Operating Range
Flow Rate
2-2600 m³/h
Max Head
250 m
Pressure
≤ 5.0 MPa
Temp Range
-80 to 350°C

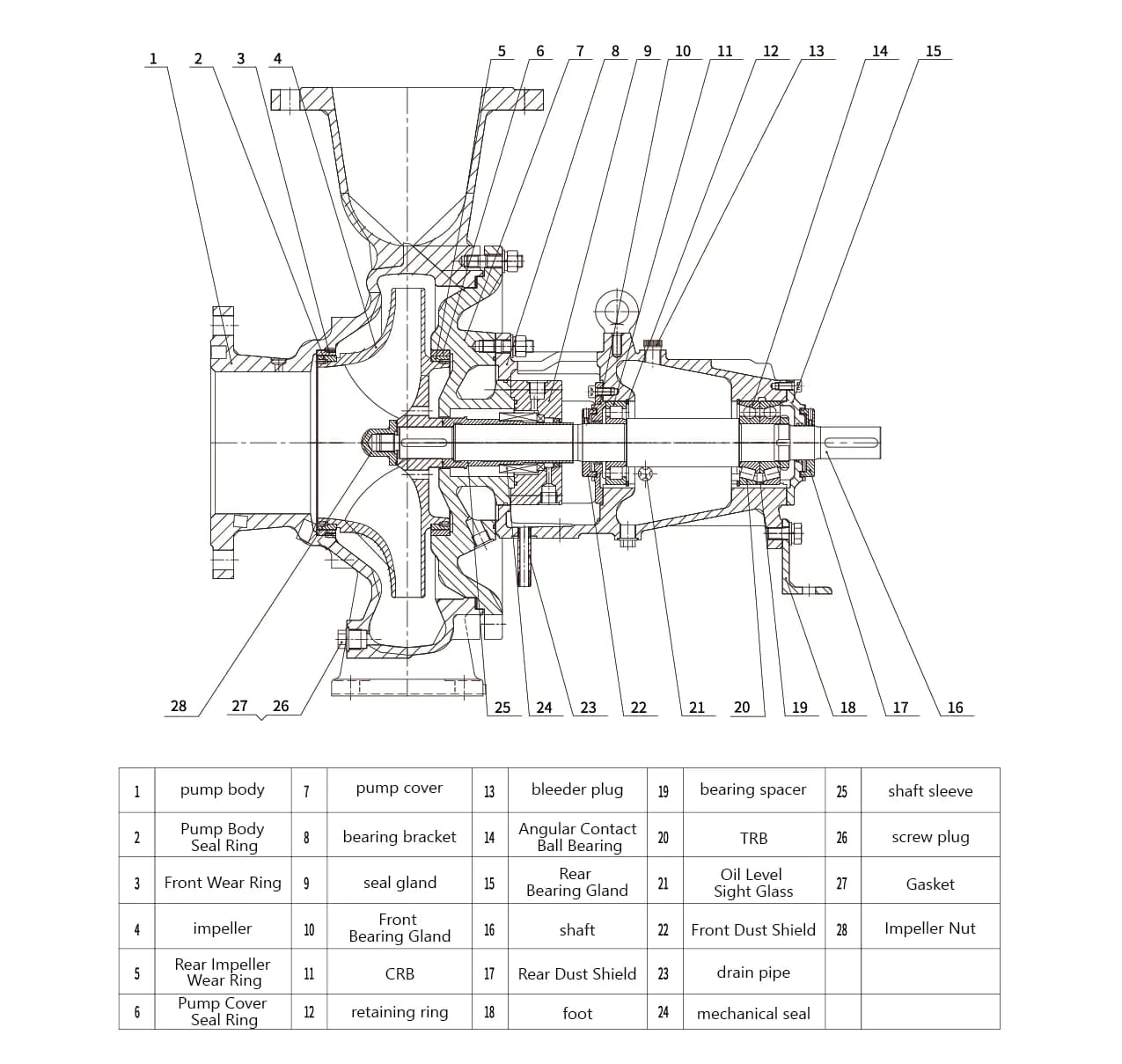

Centrifugal Pump Diagram
G2APOil and Chemical FlowSemi-Open ImpellerHigh EfficiencyPetrochemical GradeCavitation Resistant
